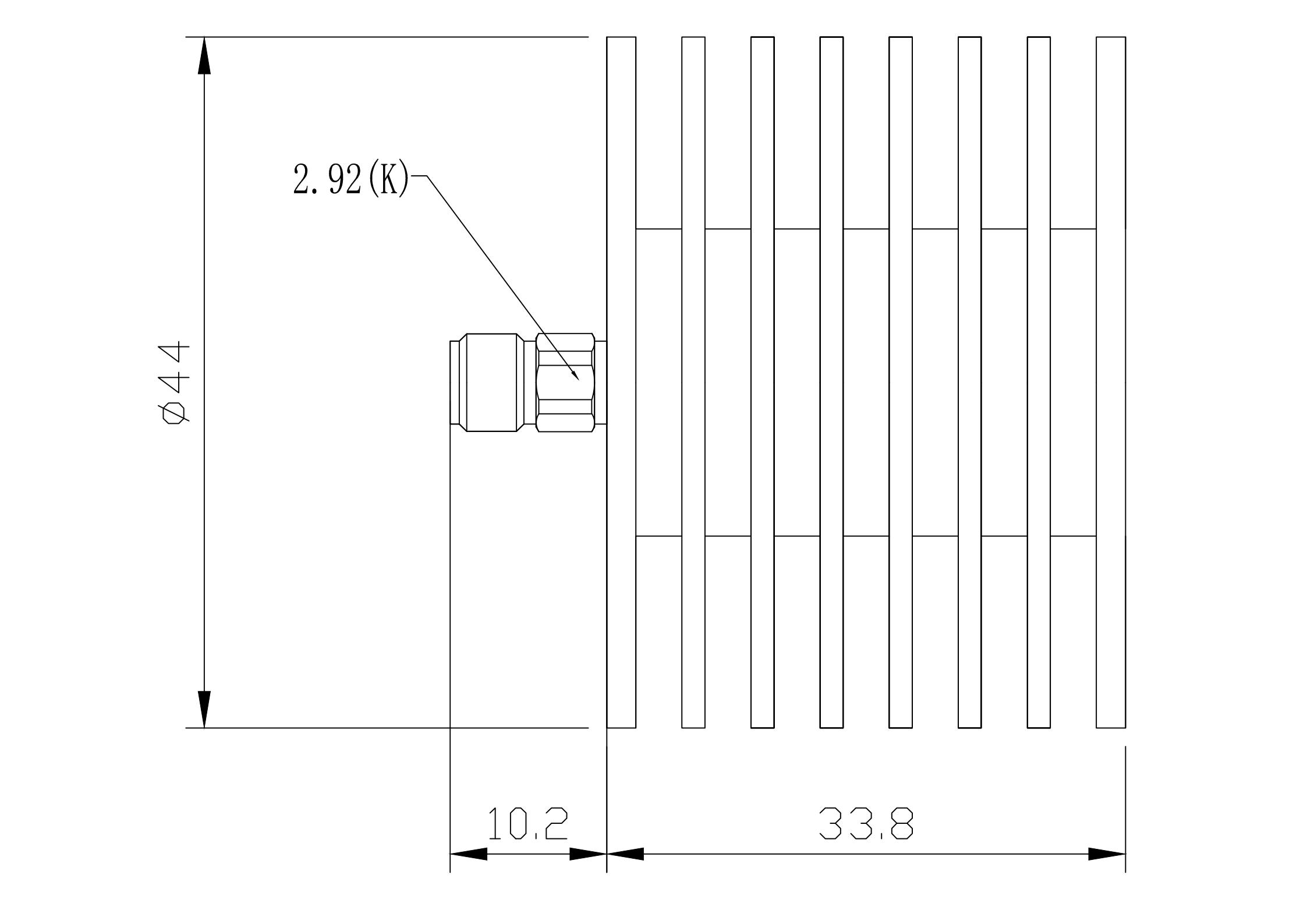

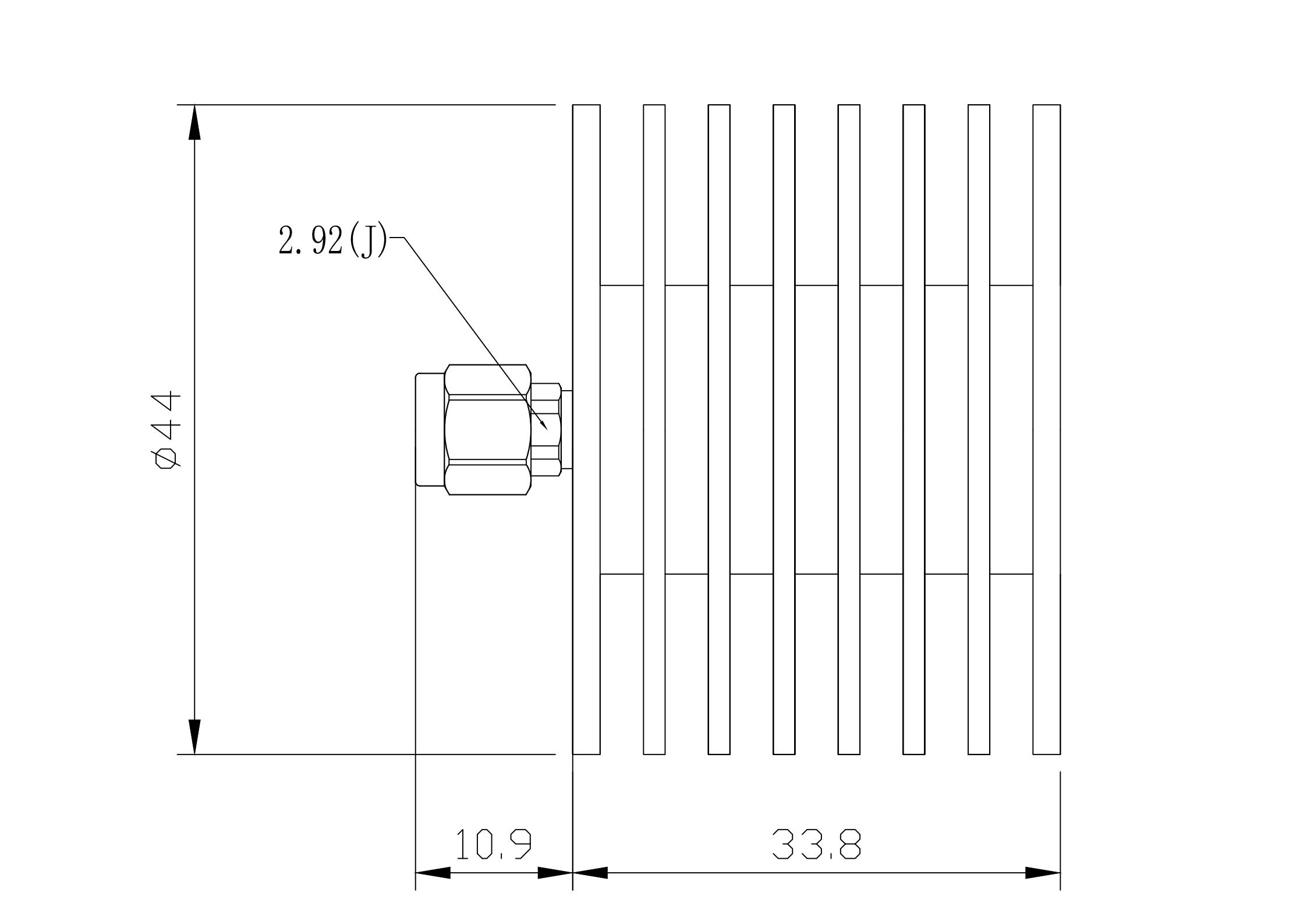

XFZ20-2.92

The coaxial load is mainly used to absorb the power of RF or microwave system and can be used as a false load of antenna and transmitter terminal. It can also be used as the matching port of multi-port microwave devices such as circulators and directional couplers to ensure the matching of characteristic impedance and accurate measurement.

XFZ20-2.92 series coaxial load average power 20W, frequency range DC~40GHz. It has the following characteristics: wide working frequency band, low standing wave coefficient, strong anti-pulse and anti-burn ability.


Download product information

-


Enclosure

Connector:Stainless Steel Passivation

Heat SinksAluminum Black Anodize

Pin

Male:Gold-plated brass 50 micro-inches

Female:Beryllium Bronze Gold 50 micro-inches

Insulators

PEI

Temp Range

Storage:-55℃~125℃

Operating:-55℃~125℃

Weight

63 g



Model


Frequency

 Range(GHz)

Max

 VSWR

XFZ20-2.92

DC-40

1.30
